#include <AiryWavesSimd.h>

Inheritance diagram for marenv::wave::AiryWavesSimd:

Collaboration diagram for marenv::wave::AiryWavesSimd:

Classes
struct	SimdSnapshot

struct	WaveDynamicSIMD

struct	WaveDynamicSIMDExpAmp
	Extended dynamic SIMD data including depth-dependent terms. See also WaveDynamicSIMD. More...

struct	WaveDynamicStack

struct	WaveStaticSIMD

Public Member Functions
	AiryWavesSimd (std::shared_ptr< WaveComponents > waveComponents)

	AiryWavesSimd (WaveEnergySpectrum::SpectrumParameters spectrumParameters, int numWaves, uint32_t randomSeed)

	~AiryWavesSimd () override=default
	Default destructor.

bool	PositionIsInWater (double time, const double pos[3])

Status	ComputeSurfaceElevation (double time, const double pos[2], double &elevationOut) override

Status	ComputeSurfaceUnitNormal (double time, const double pos[2], double unitNormalOut[3]) override

Status	ComputeParticleVelocity (double time, const double pos[3], double velOut[3]) override

Status	ComputeParticleAcceleration (double time, const double pos[3], double accOut[3]) override

Status	ComputeDynamicPressure (double time, const double pos[3], double &pressureOut) override

Status	ComputeTotalPressure (double time, const double pos[3], double &pressureOut) override

Status	ComputePointQuery (double time, const double pos[3], double &surface_elevation, double surface_unit_normal[3], double particle_velocity[3], double particle_acceleration[3], double &pressure) override

void	BlendInPlace (WaveComponentData &other, double alpha) override

const WaveStaticSIMD &	GetSimdStatic () const

Public Member Functions inherited from marenv::wave::LinearWaveTheory
	LinearWaveTheory (std::shared_ptr< WaveComponents > waveComponents, std::string waveTheoryName)

WaveField::InsecureDatapointers	GetWaveComponents () const override

std::string	SpectrumName () const override

std::string	WaveTheoryName () const override

WaveComponentData	GetWaveComponentsCopy () const override

void	BlendInPlace (WaveComponentData &other, double alpha) override

Public Member Functions inherited from marenv::wave::WaveField
virtual	~WaveField ()=default
	Virtual destructor.

virtual marenv::wave::WaveComponentData	GetWaveComponentsCopy (double time, size_t maxComponents=0) const

Additional Inherited Members
Protected Member Functions inherited from marenv::wave::LinearWaveTheory
std::shared_ptr< WaveSnapshot >	LoadSnapshot () const

void	StoreSnapshot (std::shared_ptr< WaveSnapshot > snap)

Protected Member Functions inherited from marenv::wave::WaveField
	WaveField ()=default
	Constructor.

Protected Attributes inherited from marenv::wave::LinearWaveTheory
std::string	m_spectrumName
	The name of the wave spectrum.

std::string	m_waveTheoryName
	The name of the wave theory.

Detailed Description

Calculates physical properties in a sea state from a set of for Airy theory

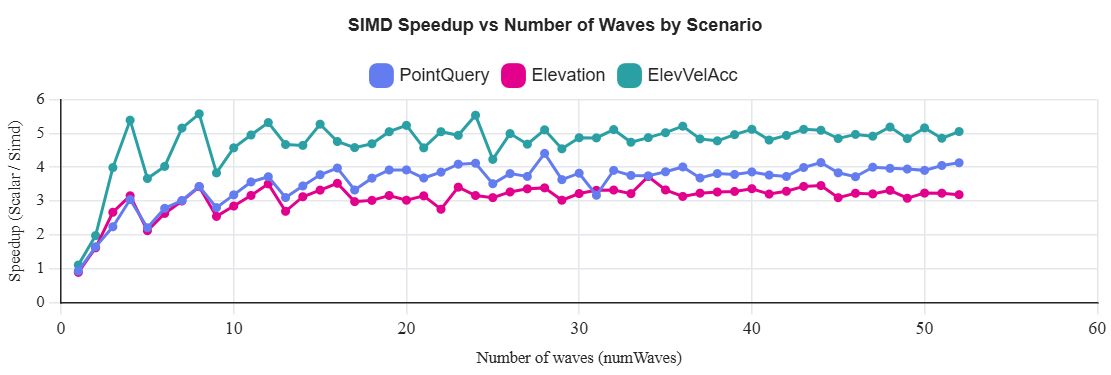

gravity waves (first-order Stokes waves). This class is based on SIMD (Single Instruction Multiple Data) operations for efficient computation of wave properties. This makes it more efficient for larger number of wave components. For a smaller number of wave components, please consider using the AiryWavesScalar class instead. Tests show that AiryWavesScalar is about 10% faster for one wave component and one call to the simplest function per iteration. Otherwise AiryWavesSimd is faster. See the image below for a comparison between AiryWavesScalar and AiryWavesSimd.

Thread safety**: concurrent calls to any Compute* method on the same instance are safe. A concurrent BlendInPlace call is also safe: it atomically publishes a new snapshot; in-flight Compute* calls complete against the old consistent snapshot and are unaffected.

Constructor & Destructor Documentation

◆ AiryWavesSimd() [1/2]

marenv::wave::AiryWavesSimd::AiryWavesSimd ( std::shared_ptr< WaveComponents > waveComponents )

explicit

Constructor of Airy waves from wave component specifications.

Parameters

[in] waveComponents Shared pointer to wave component specifications.

◆ AiryWavesSimd() [2/2]

marenv::wave::AiryWavesSimd::AiryWavesSimd	(	WaveEnergySpectrum::SpectrumParameters	spectrumParameters,
		int	numWaves,
		uint32_t	randomSeed
	)

Constructor of Airy waves from wave spectrum specification.

Parameters

[in]	spectrumParameters	Wave spectrum specifications.
[in]	numWaves	Number of waves to construct from the spectrum.
[in]	randomSeed	The random seed to use.

Member Function Documentation

◆ BlendInPlace()

void marenv::wave::AiryWavesSimd::BlendInPlace	(	WaveComponentData &	other,
		double	alpha
	)

overridevirtual

Atomically blend wave components towards another set and rebuild the SIMD

Parameters

[in]	other	Target wave component data.
[in]	alpha	Blend factor (0=keep current, 1=use other).

snapshot. Safe to call concurrently with any Compute* method.

Implements marenv::wave::WaveField.

◆ ComputeDynamicPressure()

Status marenv::wave::AiryWavesSimd::ComputeDynamicPressure	(	double	time,
		const double	pos[3],
		double &	pressureOut
	)

overridevirtual

Returns the dynamic pressure at a specific position.

Parameters

[in]	time	Current simulation time.
[in]	pos	Position (x,y,z) for which the pressure is desired.
[out]	pressureOut	The pressure at pos.

Returns: marenv::Status::OK on success. See marenv::Status for other values.

Implements marenv::wave::WaveField.

◆ ComputeParticleAcceleration()

Status marenv::wave::AiryWavesSimd::ComputeParticleAcceleration	(	double	time,
		const double	pos[3],
		double	accOut[3]
	)

overridevirtual

Returns the particle acceleration at a specific position.

Parameters

[in]	time	Current simulation time.
[in]	pos	Position (x,y,z) for which the particle acceleration is desired.
[out]	accOut	The particle acceleration at pos.

Returns: marenv::Status::OK on success. See marenv::Status for other values.

Includes effects of both current and waves.

Implements marenv::wave::WaveField.

◆ ComputeParticleVelocity()

Status marenv::wave::AiryWavesSimd::ComputeParticleVelocity	(	double	time,
		const double	pos[3],
		double	velOut[3]
	)

overridevirtual

Returns the particle velocity at a specific position.

Parameters

[in]	time	Current simulation time.
[in]	pos	Position (x,y,z) for which the particle velocity is desired.
[out]	velOut	The particle velocity at pos.

Returns: marenv::Status::OK on success. See marenv::Status for other values.

Includes effects of both current and waves.

Implements marenv::wave::WaveField.

◆ ComputePointQuery()

Status marenv::wave::AiryWavesSimd::ComputePointQuery	(	double	time,
		const double	pos[3],
		double &	surface_elevation,
		double	surface_unit_normal[3],
		double	particle_velocity[3],
		double	particle_acceleration[3],
		double &	pressure
	)

overridevirtual

Calculates multiple properties of the environment in one call.

Parameters

[in]	time	Simulation time.
[in]	pos	Position.
[out]	surface_elevation	The surface elevation above this point.
[out]	surface_unit_normal	The surface unit normal above this point.
[out]	particle_velocity	The particle velocity in this point.
[out]	particle_acceleration	The particle acceleration in this point.
[out]	pressure	The pressure. The pressure in this point.

Returns: marenv::Status::OK on success. See marenv::Status for other values.

Implements marenv::wave::WaveField.

◆ ComputeSurfaceElevation()

Status marenv::wave::AiryWavesSimd::ComputeSurfaceElevation	(	double	time,
		const double	pos[2],
		double &	elevationOut
	)

overridevirtual

Returns the surface elevation at a specific position.

Parameters

[in]	time	Current simulation time.
[in]	pos	Position (x,y) for which surface elevation is desired.
[out]	elevationOut	Surface elevation at pos.

Returns: marenv::Status::OK on success. See marenv::Status for other values.

Implements marenv::wave::WaveField.

◆ ComputeSurfaceUnitNormal()

Status marenv::wave::AiryWavesSimd::ComputeSurfaceUnitNormal	(	double	time,
		const double	pos[2],
		double	unitNormalOut[3]
	)

overridevirtual

Returns the unit normal vector of the surface at a specific position.

Parameters

[in]	time	Current simulation time.
[in]	pos	Position (x,y) for which the unit normal surface vector is desired.
[out]	unitNormalOut	The unit normal surface vector at pos.

Returns: marenv::Status::OK on success. See marenv::Status for other values.

Implements marenv::wave::WaveField.

◆ ComputeTotalPressure()

Status marenv::wave::AiryWavesSimd::ComputeTotalPressure	(	double	time,
		const double	pos[3],
		double &	pressureOut
	)

overridevirtual

Returns the total pressure at a specific position.

Parameters

[in]	time	Current simulation time.
[in]	pos	Position (x,y,z) for which the pressure is desired.
[out]	pressureOut	The pressure at pos.

Returns: marenv::Status::OK on success. See marenv::Status for other values.

Implements marenv::wave::WaveField.

◆ GetSimdStatic()

const WaveStaticSIMD & marenv::wave::AiryWavesSimd::GetSimdStatic ( ) const

inline

Static SIMD parameters used by AiryWaves computations.

Returns a reference into the current snapshot; for a stable view across multiple calls acquire a snapshot explicitly via LoadSnapshot().

◆ PositionIsInWater()

bool marenv::wave::AiryWavesSimd::PositionIsInWater	(	double	time,
		const double	pos[3]
	)

Decides if a given point is below the water surface.

Parameters

[in]	time	Time in seconds.
[in]	pos	3D position (x,y,z) in meters.

Returns: True if the position is in water at given time, false otherwise.

The documentation for this class was generated from the following file:

/update_root/webfhsim/reloadrepos/marenv/include/marenv/wave/AiryWavesSimd.h
